【电子版图纸】德国・威廉港管道连接线 (WAL)
Editable and layered digital map of the 26km DN1000 hydrogen-compatible Wilhelmshaven Pipeline Link (WAL) and its 2.85km upstream regasified LNG pipeline in Germany.
The map contains the 26km DN1000 hydrogen-compatible Wilhelmshaven Pipeline Link (WAL) and its 2.85km upstream regasified LNG pipeline. The pipeline receives natural gas from Wilhelmshaven LNG FSRU in Wilhelmshaven, Lower Saxony, and sends the gas to in Wittmund, Lower Saxony, where it interconnects with the NETRA Gas Pipeline.
️Table of Descriptions
1 Product Details
2 Files Included in This Digital Map
3 Editability of Map
4 Related Upstream/Downstream Pipelines
️1 Product Details
- Product Name: Map of Wilhelmshaven Pipeline Link (WAL)
- Produktname: Karte der Wilhelmshavener Anbindungsleitung (WAL)
- Product Type: Vector Map
- Pipeline Abbreviation: WAL
- Pipeline Length: 26km for WAL and 2.85km for its upstream regasified LNG pipeline
- Country: Germany
- From: Wilhelmshaven, Lower Saxony
- To: Wittmund, Lower Saxony
- No. of LNG FSRU, Control and Measuring Stations: 3
- No. of Valve Station: 1
- Coordinate Data: Not Available
- File Formats: Adobe PDF, Adobe Illustrator
- Lifetime Updates: Supported
- Language: English
Note: This digital map is NOT a GIS map or don’t contain coordinate data.
️2 Files Included in This Digital Map

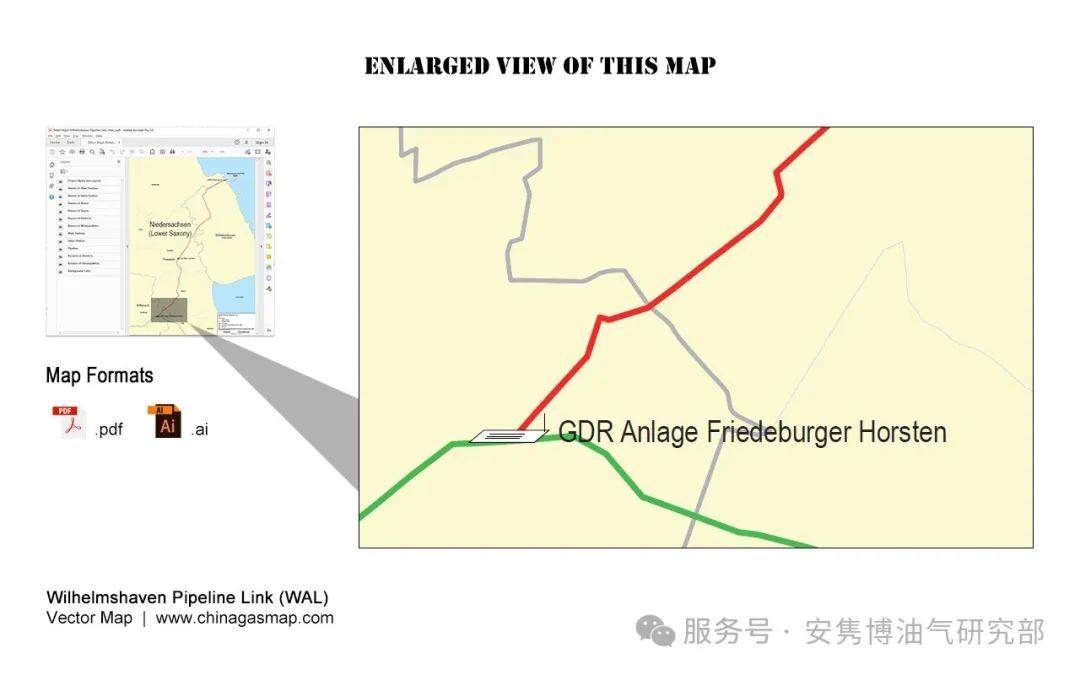

️[Main Map] ️Wilhelmshaven Pipeline Link (WAL)
This map includes the geographical area from the pipeline’s starting point to its end point. Its content contains the pipeline route, stations along the pipeline, and the administrative regions that the pipeline passes through.

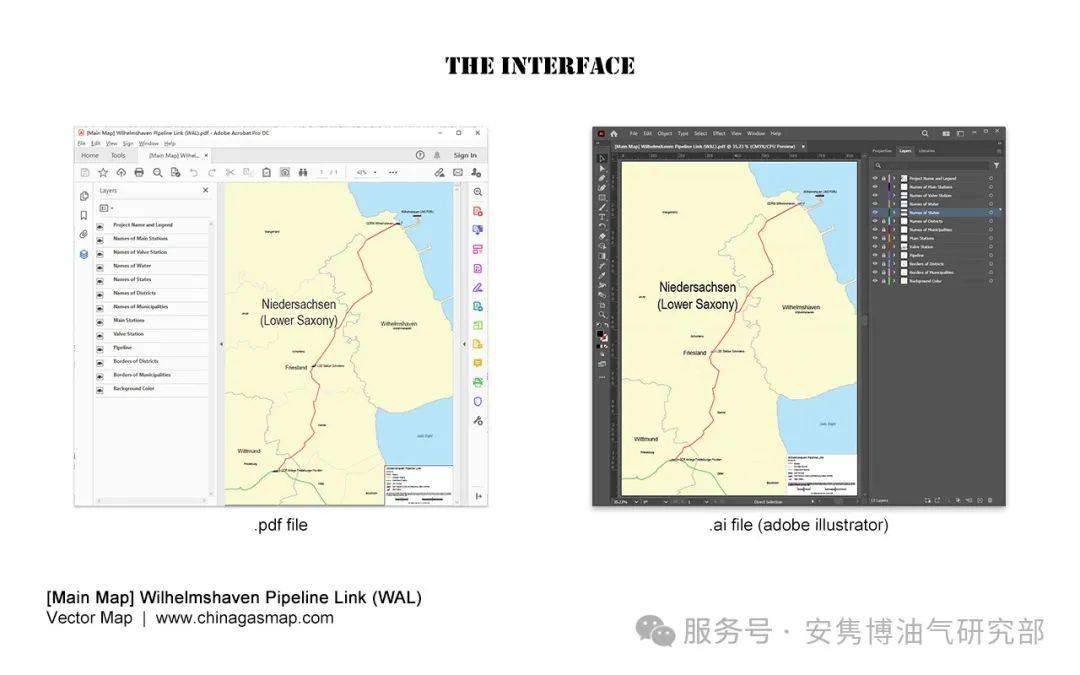

Two file formats, .pdf and .ai (Adobe Illustrator), are included. Both of them are editable and layered. Users can show and hide a layer simply with a mouse click.
The map consists of following independent layers:
- Project Name and Legend
- Names of Main Stations
- Names of Valve Station
- Names of Water
- Names of States
- Names of Districts
- Names of Municipalities
- Main Stations
- Valve Station
- Pipeline
- Borders of Districts
- Borders of Municipalities
- Background Color
️3 Editability of Map:
Based on the layered digital map (.pdf and .ai), users can perform further development and modifications, including but not limited to:
- Adjusting the position of text and modifying its attributes such as font, font size, and color;
- Adjusting the position and size of icon symbols;
- Modifying the path of oil and gas pipelines to reflect changes caused by rerouting;
- Adding new pipelines and stations;
- Changing the border color and line weight of different administrative regions;
- Modifying the map background color.
️4 Related Upstream/Downstream Pipelines:
We also provide digital maps of following direct upstream/downstream pipelines.
️Downtream Pipelines:
NETRA Gas Pipeline
